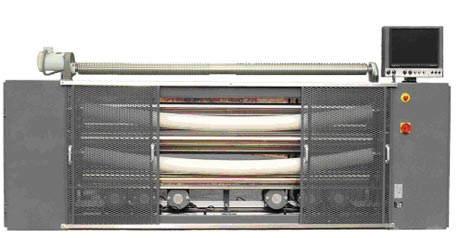

Weft Straightener for Knitted Fabrics Model PS-206K

Weft Straightener for Knitted Fabrics Model  PS-206K
Weft Straightener for Knitted Fabrics Model  PS-206K

Designed for correcting skew and bow distortions in knitted fabrics.



Standard Features

  • 4 to 12 stationary mounted photoelectric sensors automatically enabled in the presence of fabric.
  • 3 skew rolls and up to 3 bow rolls, activated by means of electric servo drives
  • Control panel integrated with a 15" color monitor, which can be mounted on the machine or in any place convenient to the operator.
  • Skew and bow distortion presets for biasing the carpet intentionally.
  • Course selector for adapting the machine to very broad range of carpets and fabrics.
  • Self-diagnostics.
  • Scroll Roll Spreader for spreading fabrics with curling edges.

Optional Features

  • Ununiform Distortion Correction Package for straightening distortions called "hook".
  • Residual Distortion Package.
  • Touch Screen Controls.

Self-Diagnostics
The machine continuously monitors status of its essential components, detects and displays existing faults in two categories: minor and major. With minor problems (i.e. burnt light bulb, bad sensing head) the machine will continue to run in automatic mode. When a major problem is detected, the machine will turn on alarm, which may be used to shut down other machinery.

Specifications
Widest Fabric: 3000 mm (118")
Roll Diameter: 100 mm (4.0")
Bow Roll diameter: 100 mm (4.0")
Straightening capacity: skew 400 mm (16") bow 200 mm (8")
Maximum Line Speed: 250m/min
Mains: 220 VAC, 1kVA, single ph.
Weight: up to 1250 kg (2700 lb)

Control Panel
Control panel
integrated with a 15" Flat Panel Display. Beside usual information about the machine and the fabric, it also shows (in the lower part of the screen) total length of the fabric ran through the machine per shift and length of the carpet in particular tolerances, with ability for printing it out
Optional Control Panel
Optional control panel
with a Flat Panel Display and a Touch Screen Controls
 Oversized electric servo drives
Oversized electric servo drives
and mechanical transmissions are virtually maintenance free.
 Weft Sensing Head WS-101
Patented Weft Sensing Head WS-101
with an infrared light source
